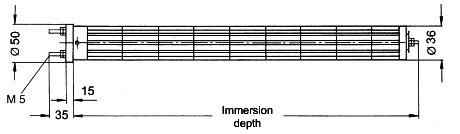

Ceramic heating elements Ø 36 mm

for installation in protection tubes
consisting of the ceramic coil support, the heating coil and the heat-resistant support rod
for horizontal mounting
Ceramic heating element for preheating of water, thermal oil, lubricating oil and hydraulic oil

Ceramic sectional heaters Ø 36 mm for mounting in protection tubes Ø 42 mm

Cat. No.	Diameter (mm)	Immersion depth (mm)	Voltage (Volt)	Capacity (Watt)	Weight (kg)
54360020	36	200	230	400	0,40
54360030	36	300	230	600	0,60
54360040	36	400	230	800	0,75
54360050	36	500	230	1000	0,95
54360060	36	600	230	1200	1,10
54360070	36	700	230	1400	1,45
54360080	36	800	230	1600	1,65
54360090	36	900	230	1800	1,80
54360100	36	1000	230	2000	2,00
54360110	36	1100	230	2200	2,20
54360120	36	1200	230	2400	2,35
54360140	36	1400	230	2800	2,50
54360160	36	1600	230	3200	2,85
54360180	36	1800	3x400	3600	3,20
54360200	36	2000	3x400	4000	3,55

Available on request: other lengths and heating capacities, unheated zones, other voltages and materials.
