Cartridge heaters - G2 with thermostat

Cartridge heater consisting of a brass connector G2 with
hard-soldered steel tube Ø 36 mm
with interchangeable ceramic heater insert
single-pole adjustable thermostat 0-85° C
with connection box in steel or stainless steel

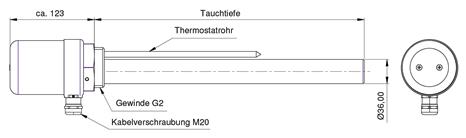

IP 65 with internal temperature setting

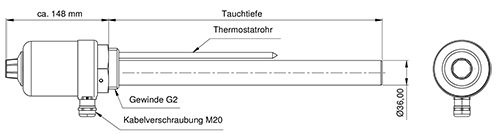

IP 54 with external temperature setting
Immersion heater for horizontal mounting
Suitable for lubricating oil systems and liquids
Please verify the permissible surface load

Cartridge heater Ø 36 mm with ceramic heating element Ø 32 mm

Cat. No.	Immersion depth (built-in length) (mm)	Voltage (Volt)	Capacity (Watt)	Surface load (W/cm²)	Weight (kg)
54692030	300	230	450	1,5	1,8
54692040	400	230	600	1,5	2,1
54692050	500	230	750	1,5	2,3
54692060	600	230	900	1,5	2,5
54692070	700	230	1050	1,5	2,7
54692080	800	230	1200	1,5	2,9
54692090	900	230	1350	1,5	3,1
54692100	1000	230	1500	1,5	3,3

Sheath material: Steel: Ø 36 mm

Available on request:other lengths and heating capacities, unheated zones, other voltages and materials.
