Screw plug immersion HEATERS | EHK series
stainless steel, with thermostat and temperature limiter
- screw plug immersion heater consisting of brass connector
G 1 1/2 - with 3 U-shaped hard-soldered immersion heater tubes
Ø 8,5 mm - material: 2.4858 for heating of water
- with 3-pole adjustable thermostat 0-85 °C and
3-pole limiter 92 °C ± 4 K - screw-in heating element with plastic hood
- protection system IP 30

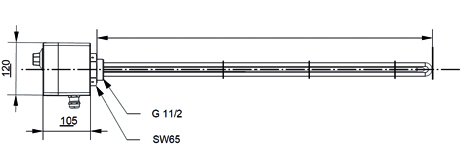

Screw plug immersion heater with temperature controller and limiter
| Cat No. | Immersion depth (built-in length) (mm) | Voltage (Volt) | Capacity (Watt) | Watt density (W/cm²) | Weight (kg) |
|---|---|---|---|---|---|
| 11254035 | 350 | 230/400 | 3000 | 6,3 | 1,65 |
| 11254045 | 450 | 230/400 | 4000 | 6,3 | 1,80 |
| 11254055 | 550 | 230/400 | 5000 | 6,3 | 1,95 |
| 11254065 | 650 | 230/400 | 6000 | 6,3 | 2,10 |
| 11254080 | 800 | 230/400 | 7500 | 6,3 | 2,33 |
| 11254095 | 950 | 230/400 | 9000 | 6,3 | 2,55 |
Sheath material: 1.4541, 1.4571, 1.4828, 1.4876, 2.4858
Available on request: other lengths and heating capacities, unheated zones, other voltages, materials and connector sizes. Different temperature controller and limiter are available.
